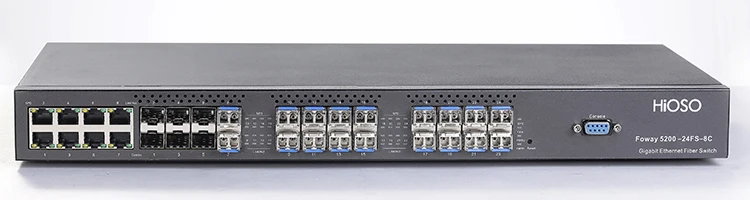

16 1000M SFP 8 Combo Uplink Fiber Switch Fiber Optic Switch 24 Port

Brand Name : Hioso

Model Number : FOWAY5200-24FS-8CM-BP

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000psc/month

Delivery Time : 2-10 working days

Packaging Details : 44mm (H)*440mm(W)*210mm (D)

Type : FTTH

Ports : 16 1000M SFP + 8 Combo Uplink

Transmission Rate : 100Mbps

MAC : 16K

Working Temperature : -10-60℃

Power Supply : AC100-240v

Dimension : 44mm (H)*440mm(W)*210mm (D)

Contact Now

FOWAY5200-24FS-8CM-BP Fiber optic equipment 24 port switch 16 1000M SFP + 8 Combo Uplink Fiber Switch
16 1000M SFP 8 Combo Uplink Fiber Switch Fiber Optic Switch 24 Port
16 1000M SFP 8 Combo Uplink Fiber Switch Fiber Optic Switch 24 Port
FOWAY5200-24FS-8C 16 1000M SFP + 8 Combo Uplink Fiber Switch
Character ✔Support 16 100/1000M SFP (or SFP-1000BaseT RJ45 ) access and 8 Gigabit Combo port (100M/1000M SFP optional, or 10/100/1000M RJ45 port) ✔Support the default 100M,1000M SFP and the SFP-1000BaseT RJ45 hot plug ✔Support full rate, full-duplex non-blocking forwarding at each port ✔Support WEB ,and SNMP management (optional):VLAN,STP/RSTP,Trunk port aggregation, IGMP,port Mirroring,port isolation,broadcast control,loop detection,QinQ, etc ✔Support DHCP,PPPoE,ACL,LLDP ✔Support 16K MAC learning, 6Mbit storage and forward cache space,128G back plane bandwidth,10KByte Large frame forwarding ✔All optic ports, strengthen the an-interference ability ✔Support the AC dual redundant power supply hot backup and DC12V/5A spare battery power ✔Standard 1U rack ,internal double cooling fan,better for heat dissipation,work stable .
Technical Specification
Parameter
Specification
Standard
IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit
Ethernet, IEEE802.1d Spanning Tree Protocol,IEE802.1w Rapid STP,IEE802.1s Multiples STP,IEE802.1q Vlan,IEE802.1q Qos,IEE802.3ad
Trunk,IEE802.3X Flow Control
Wavelength
SFP:850nm/1310nm/1490nm/1550nm
Distance
100M SFP Multi-mode: 2km (fiber size 62.5/125μm or 50/125μm)
Single-mode: 20/40/60/80/100/120Km
Single-fiber single-mode: 25/40/60/80/100/120Km
1000M SFP Multi-mode: 220m (fiber size 62.5/125μm)/550m(fiber size 50/125 μm)
Single-mode: 10/20/40/60/80/100/120Km
Single-fiber single-mode:10/20/40/60/80/100/120Km
CAT5: 100m
Port
16 Gigabit SFP fiber ports: 1000Mbps,1000M SFP / SFP-1000BaseT
8 Gigabit Combo port:: 1 Gbps, 100M/1000M SFP&10/100/1000M RJ45
1 USB console port
MAC
16K
Buffer memory space
6Mbit
Bit error rate
<1/1000000000
MTBF
100000 hours
Power
AC 110-240V
Power consumption
30W
Working temperature
-10~60℃
Storage temperature
-40~80℃
Humidity
5%~90% non-condensing
Dimension
44mm (H)×440mm(W)×210mm (D)
Product Usage
16 1000M SFP 8 Combo Uplink Fiber Switch Fiber Optic Switch 24 Port
